Builder: H&H Marine Inc. Steuben ME
Owner: Derek Feeney, Cutler, ME
Dimensions: 47'4" x 19'2" x 5'4"
Designer: Osmond Beal, Beals ME
Fishery: Lobster
Hull: Solid fiberglass
Top: Molded unit/Divinycell foam cored
Power: DI16 Scania (800 hp @ 2200 rpm) w/2.4:1 ZF gear; Toppin's Diesel & Marine
Speed: 22.5 knots (GPS)
Prop: 38" x 36" x 4; H & H Propeller Shop Inc.
Shaft: 3"; H&H Propeller Shop Inc.
Bearings: R.E. Thomas Marine Hardware Inc.
Steering: Marine Hydraulic Engineering Co. Inc.
Hauler: Marine Hydraulic Engineering Co. Inc.
Metal fabrication: Esposito's Welding
Electronics: Win-Tron Electronics
Fuel Capacity: 500 gallons (two tanks)

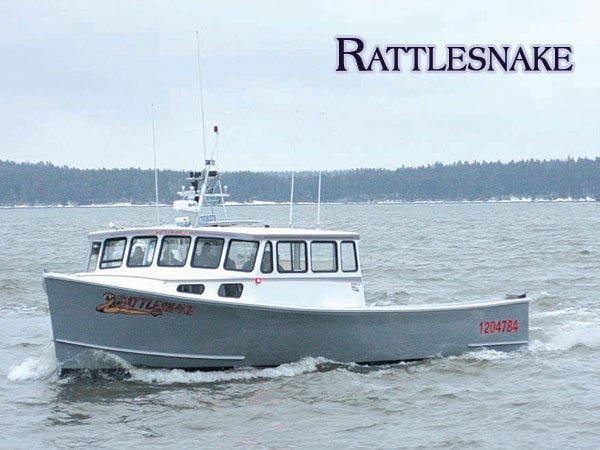

Comments: Here it is, at long last: the first of the Osmond 47s, H&H Marine's latest and largest offering to date. This behemoth is rated at 43,000 pounds displacement. After sea trials, one more inch of pitch was prescribed for the wheel.[attachment=0:3qnnk83g]14rattlesnake.jpg[/attachment:3qnnk83g]



Tumblehome

Senior Member
Joined
Sep 2, 2011
Posts
214
Likes
93
Location
Sheepscot Valley, Maine
From left to right: 45 Young Bros., 42 Wesmac, 42 Osmond (H&H), 40 Wayne Beal, and finally, a 38 Holland. As seen at the Jonesport/Beals boat races, 7/11.


thebridge

Senior Member
Joined
Sep 8, 2011
Posts
119
Likes
9
I have a 29'6 H&H Osmond Beal and love it!! Has a 220 JD and is great in a forward sea. Use if for lobster


Dslpwr

Captain
Joined
Mar 27, 2014
Posts
745
Likes
989
Location
Columbia Falls
Boat Make
35' Mitchell Cove waiting to be laid up
It's my customer 800hp Scania DI16 same setup as the Rattlesnake. Fishes out of Milbridge ME
